XPG转鼓式洗瓶机
Drum type bottle washing machine

GH50变频自动旋盖机
主要特点:

本机为口服液瓶及输液瓶等瓶子的专用清洗设备,釆用单轨或双轨结构,包括供瓶转盘、进瓶拨轮、清洗转鼓(根据需要可增加超声波清洗瓶转鼓)、出瓶导轨等工位。供瓶盘将瓶子整理成列送至拨轮处,二拨轮每转一周把数个瓶子拨进转鼓,转鼓作间歇转动,转鼓上的瓶子随转鼓转动,分别经过(超声波)、回用水冲淋、纯水(或注射用水)清洗及净化压缩空气吹淋完成整个洗瓶过程。由于本机采用模块组合化设计,转鼓可以整体脱卸,所以比传统机型更换规格更加方便,本机具备运转平稳,动作可靠,清洗效果好等优点。

Main Performance:

This machine for oral liquid bottles and infusion bottle bottles of special cleaning equipment, adopt single or dual track structure, including for rotary bottle, bottle feeding thumbwheel, washing drum (ultrasonic washing drum can be increased as needed), out of the bottle guide rail station. Bottle into column for bottle tray to dial wheel, two dial wheel rotate every week put a few bottles into the drum, drum for intermittent rotation, the bottle on the drum rotation, respectively after (ultrasonic), back to drench water, pure water (or water for injection) cleaning and purifying compressed air blow pipe to complete the whole process of washing bottle. Due to the machine adopts the module combination design, drum can the overall measures, so the change of more convenient than traditional models, this machine has smooth operation, reliable operation, good cleaning effect, etc.

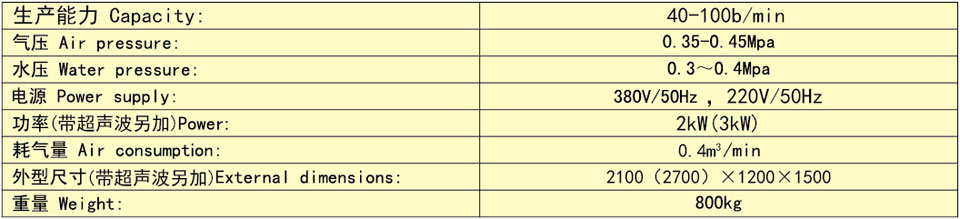

主要技术参数 Main Technical Specifications:
